Hard-mounted Multi-solvent Dry Cleaning Machine with Vacuum Distillation Features
1. Hydrocarbon or Modified Alcohol Solvent
2. Available capacity 8kg, 12kg, 16kg, 20kg, 25kg, 30kg
3. User-friendly controller with fault diagnosis
4. Two solvent tanks for the dark or light color.
5. Carbon Filter, Nylon Filter with CIP, and lint filter always keep the solvent clear
6. Solvent Pallet to keep the center clean
7. SUS304 solvent touching parts, corrosion free.
9. Sterilization and disinfection function
10. Effecive drying with heat pump
11. Built-in steam generator
12. Vacuum distillation with defoaming function
Optional Features for Multi-Solvent Dry Cleaning Machine with Vacuum Distillation
If there is any customization requirement, please feel free to let us know.
Specifications of Hard Mounted Multi Solvent Dry Cleaning Machine with Vacuum Distillation
| HM608B | HM612B | HM616B | HM620B | HM625B | HM630B | ||
| Capacity | Kg | 8 | 12 | 16 | 20 | 25 | 30 |
| Drum Volume | It | 145 | 215 | 285 | 350 | 440 | 560 |
| Washing Speed | rpm | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
| Extracting Speed | rpm | 500-600 | 500-600 | 500-600 | 500-600 | 500-600 | 500-600 |
| Voltage | Vt | 220/380 | 380 | 380 | 380 | 380 | 380 |
| Total Power | Kw | 18 | 21 | 24 | 24 | 24 | 24 |
| Compressed air | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Water Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Dimensions | mm | 1650*1300*2150 | 1650*1400*2150 | 2100*1350*2300 | 2100*1450*2300 | 2400*1300*2100 | 2400*1350*2100 |
| Net Weight | Kg | 950 | 1100 | 1400 | 1600 | 1800 | 1900 |

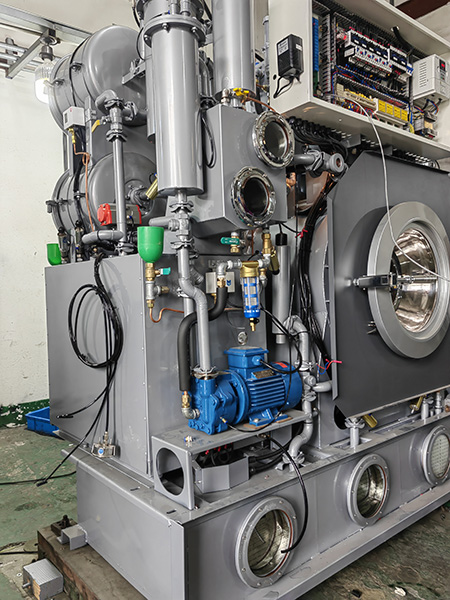

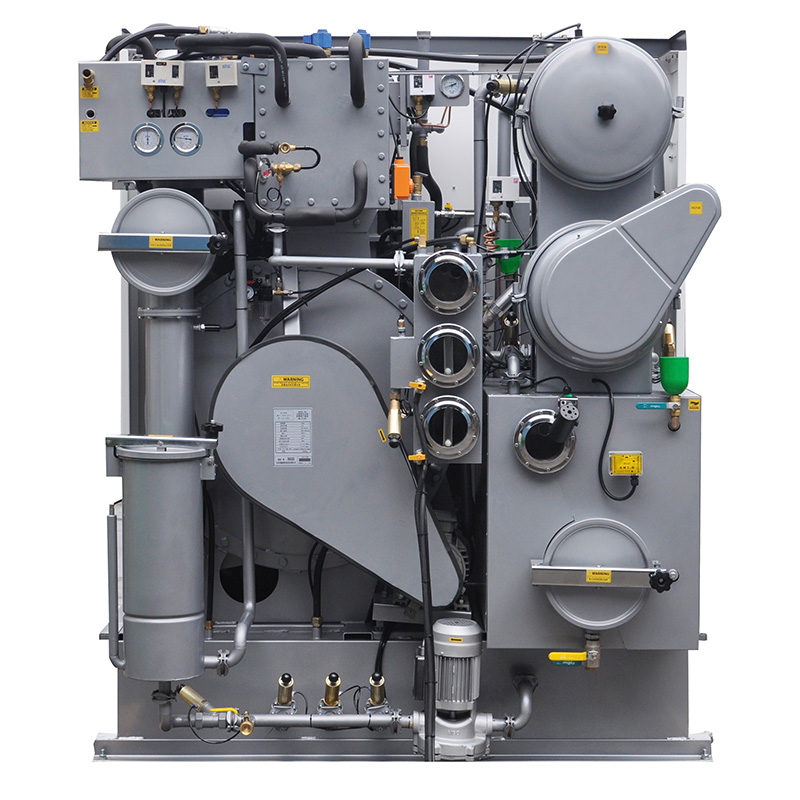

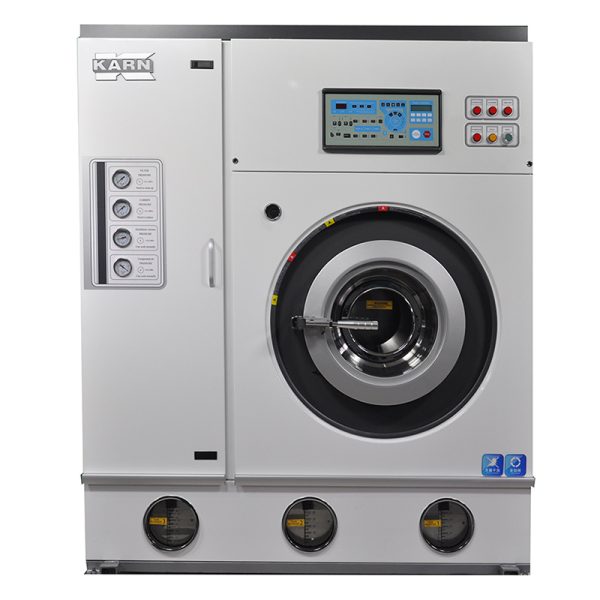

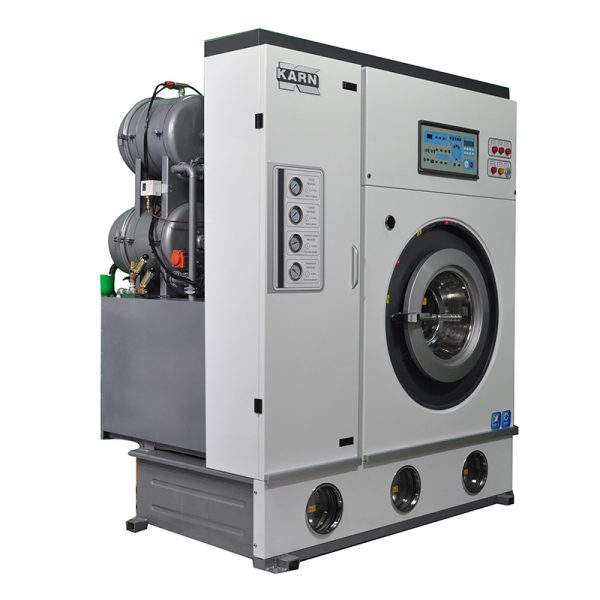

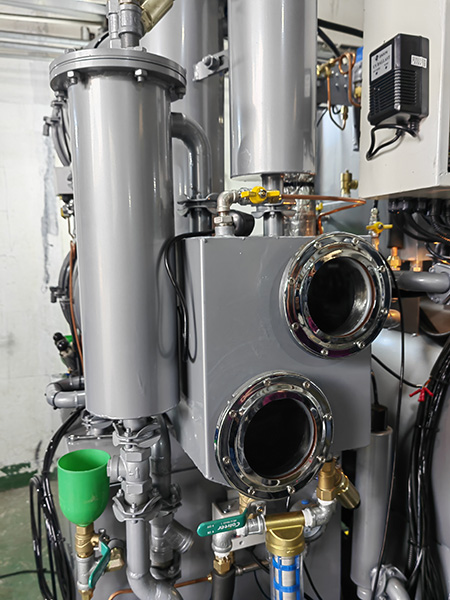

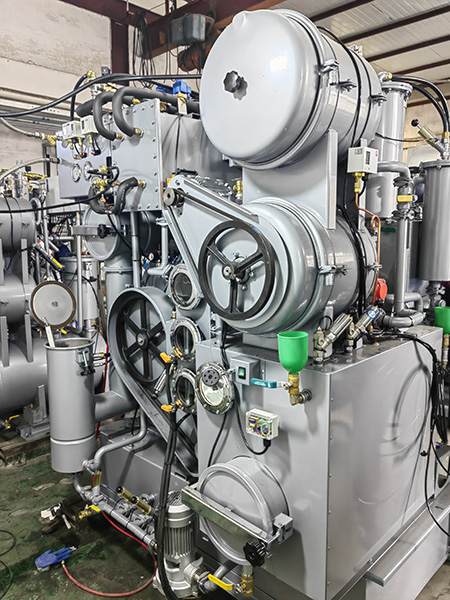

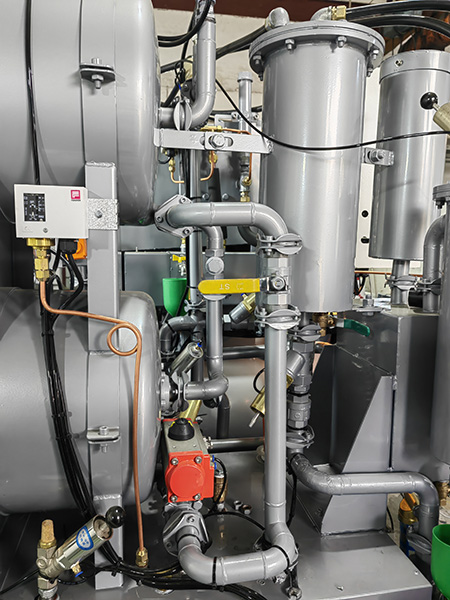

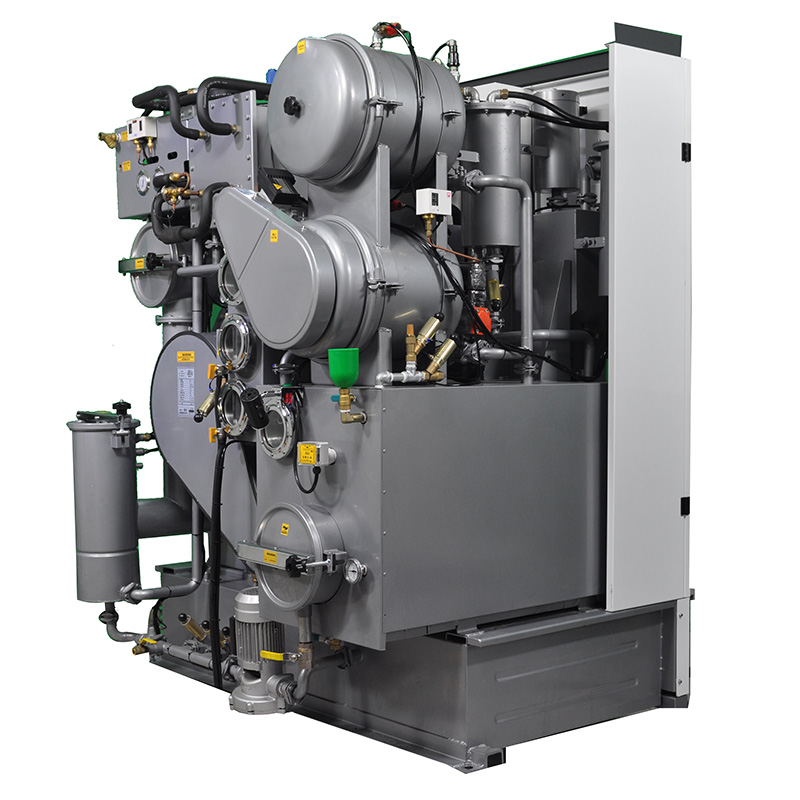

Details of Multi-Solvent Dry Cleaning Machine with Vacuum Distillation
 |
 |
 |
 |
