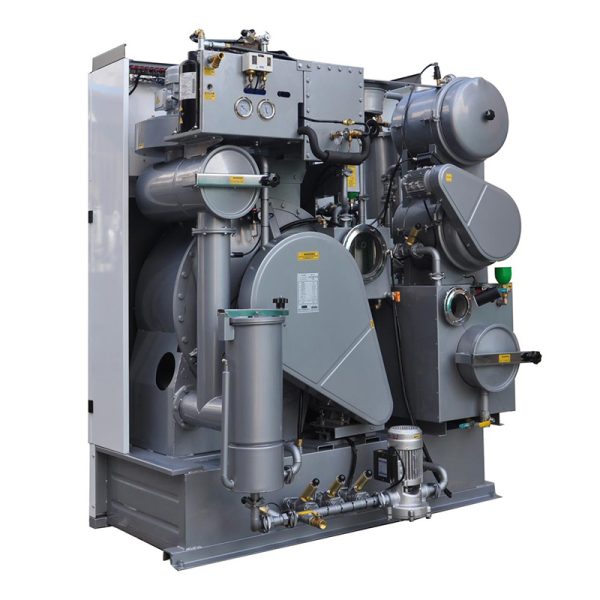

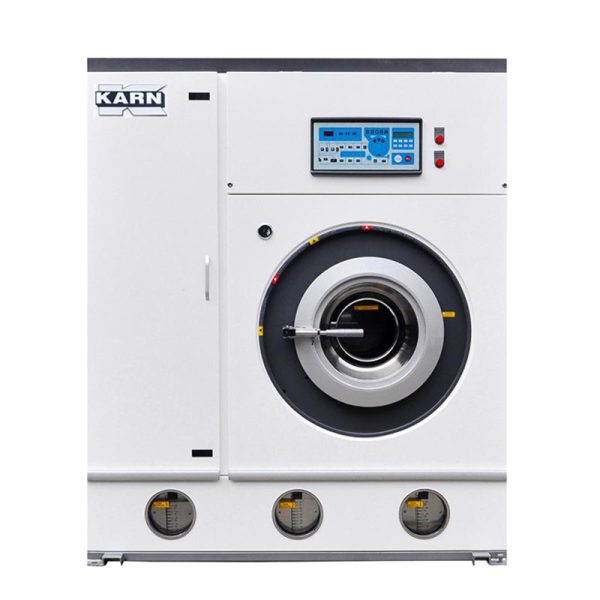

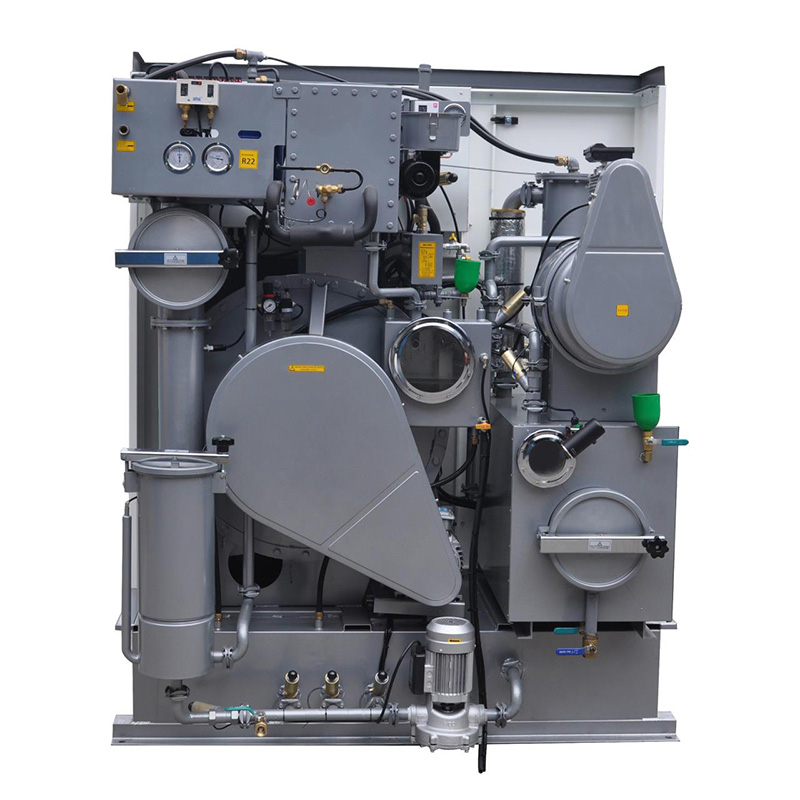

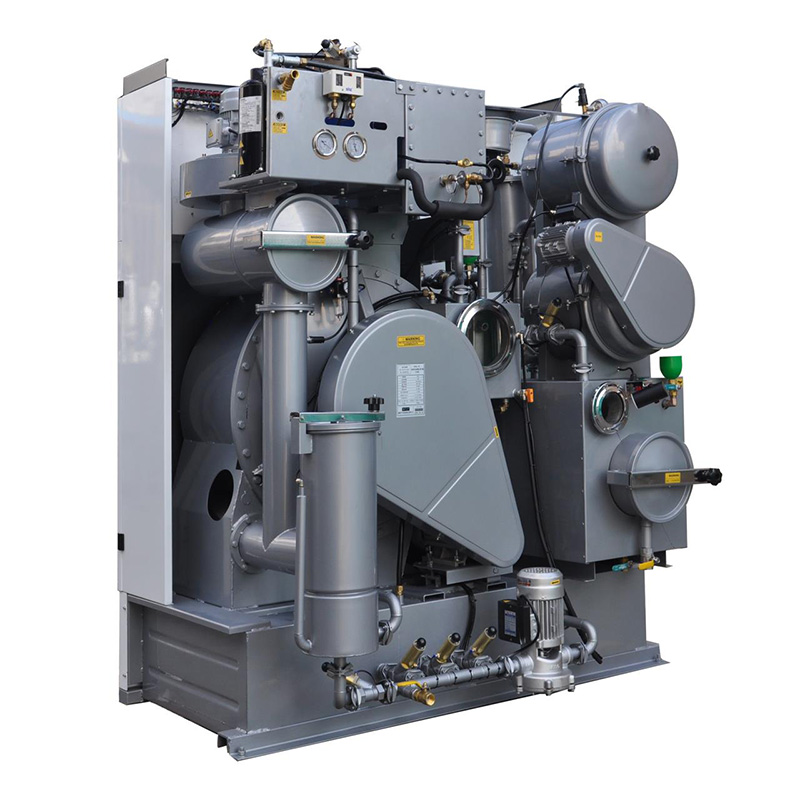

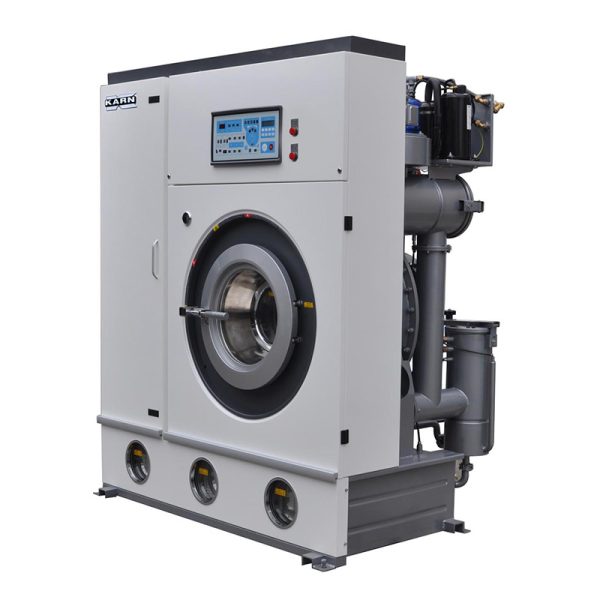

8kg to 30kg closed-loop Perchloroethylene Solvent Dry Cleaning Machine Features
1. Perchloroethylene(PERC) Solvent only
2. Available capacity 8kg 10kg 12kg 16kg 20kg 25kg 30kg
3. Fully automatic controller with fault diagnosis
4. Fully enclosed design to prevent PERC mist volatilizing into air, to protector the user.
5. Advanced filtration system of carbon Filter, Nylon Filter and lint filter to keep the solvent clear
6. Solvent Pallet to keep the center clean
7. SUS304 solvent touching parts, corrosion free.
9. Fast dIstillation, anti-deposition design.
10. Built-in steam generator
Optional Features for Hard-mouted Alternative Solvent Dry Cleaning Machine Features
A. PLC control system with touch screen HMI
B. If there is any customization requirement, pls feel free to let us know.
Specifications of 8kg to 30kg closed-loop Perchloroethylene Solvent Dry Cleaning Machine
| P408B | P410B | P412B | ||
| Capacity | Kg | 8 | 10 | 12 |
| Drum Volume | It | 145 | 185 | 215 |
| Washing Speed | rpm | 20-50 | 20-50 | 20-50 |
| Extracting Speed | rpm | 400-600 | 400-600 | 400-600 |
| Voltage | Vt | 220/380 | 380 | 380 |
| Total Power | Kw | 18 | 21 | 21 |
| Compressed air | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Water Pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Dimensions | mm | 1650*1250*2050 | 1650*1300*2100 | 1650*1350*2100 |
| Net Weight | Kg | 900 | 1000 | 1100 |
| P416S | P420S | P425S | P430S | ||
| Capacity | Kg | 16 | 20 | 25 | 30 |
| Drum Volume | It | 285 | 350 | 440 | 560 |
| Washing Speed | rpm | 20-50 | 20-50 | 20-50 | 20-50 |
| Extracting Speed | rpm | 400-600 | 400-600 | 400-600 | 40-600 |
| Voltage | Vt | 380 | 380 | 380 | 380 |
| Total Power | Kw | 21 | 21 | 7.3 | 7.3 |
| Compressed air | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Water Pressure | Mpa | 0.2-0.2 | 0.2-0.2 | 0.2-0.2 | 0.2-0.2 |
| Dimensions | mm | 1950*1450*2300 | 1950*1500*2300 | 2400*1400*2500 | 2400*1500*2500 |
| Net Weight | Kg | 1400 | 1600 | 1800 | 2000 |
